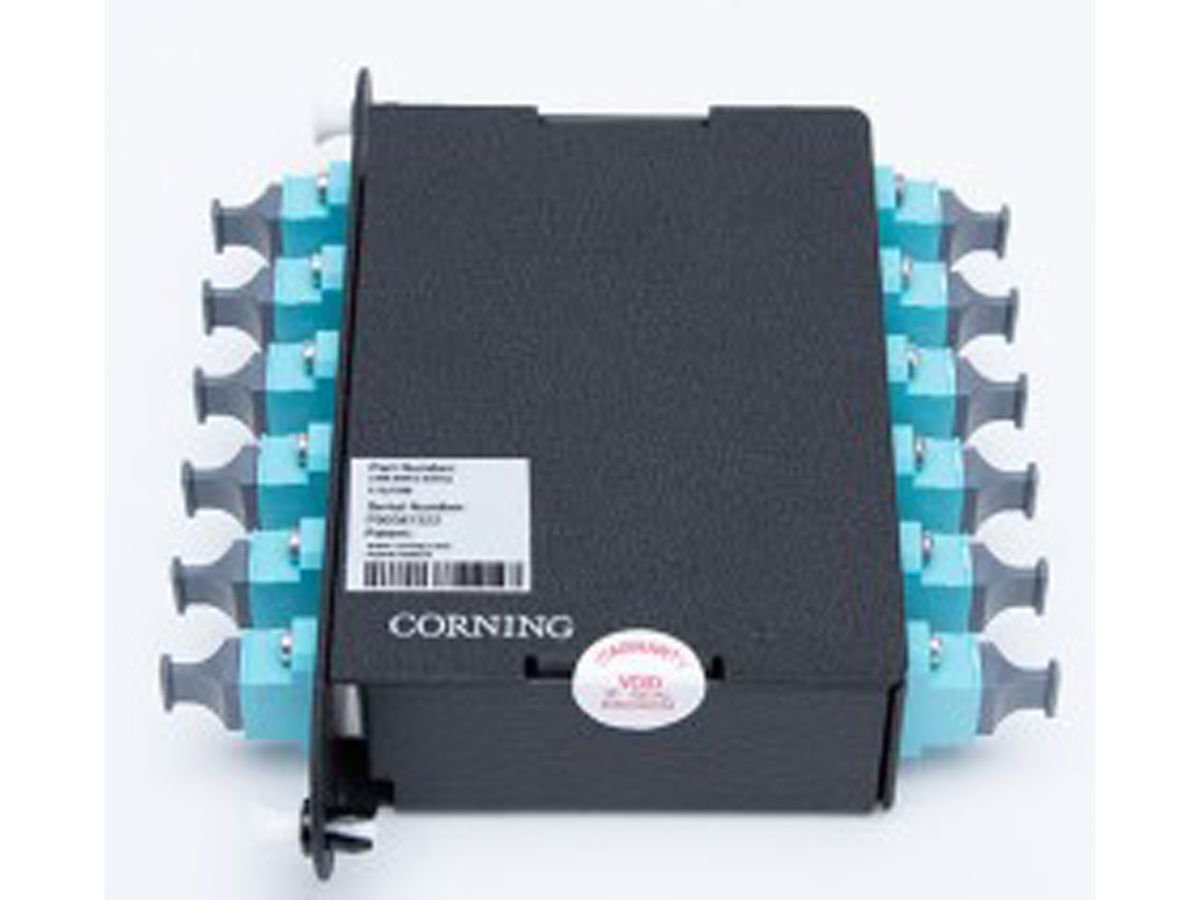

CMM-MM72-9375Q
Plug & Play™ 6x6 Mesh Modules 72 F, MTP to MTP, 50 µm multimode (OM4)
You might also be interested in
Standards
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
Design
| Adapter Type Back | MTP® |
| Adapter Color Back | Aqua |
| Adapter Type Master Level | MTP® |
| Adapter Color Front | Aqua |
| Adapter Type Front | MTP® |
| Panel or Module Type | CCH |
Optical Specification - Hardware
| Module Insertion Loss, Max | 0.6 dB |
Specifications - Connector A
| Connector Type | MTP® (pinned) |
| Ferrule Material | Composite |
Specifications - Connector B
| Ferrule Material | Composite |
Dimensions
| Height | 6.12 in |
| Width | 1.37 mm (0.05 in) |
| Depth | 5.26 in |
| Weight | 0.41 kg |
Ordering Information
| Shipping Weight | 0.524 kg |
| Units per Delivery | 1/1 |
