192WH4-Y3C40A20
MiniXtend® XD Cable with Binderless* FastAccess™ Technology, A-DQ(ZN)2Y 192 F (8x24), Single-Mode (G.652.D, G.657.A2, 190µm), Telcordia
General Specifications
| Product Number | 192WH4-Y3C40A20 |
| Cable type | Stranded Loose Tube |
| Environment | Outdoor |
| Product type | Dielectric |
| Fibre category | G.657.A2 |
| Application | Miniduct |
| Cable geometry | Round |
Standards
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
Environmental Conditions
| Temperature range, installation | -5 °C to 50 °C |
| Temperature range, operation | -30 °C to 70 °C |
| Temperature range, storage | -40 °C to 70 °C |

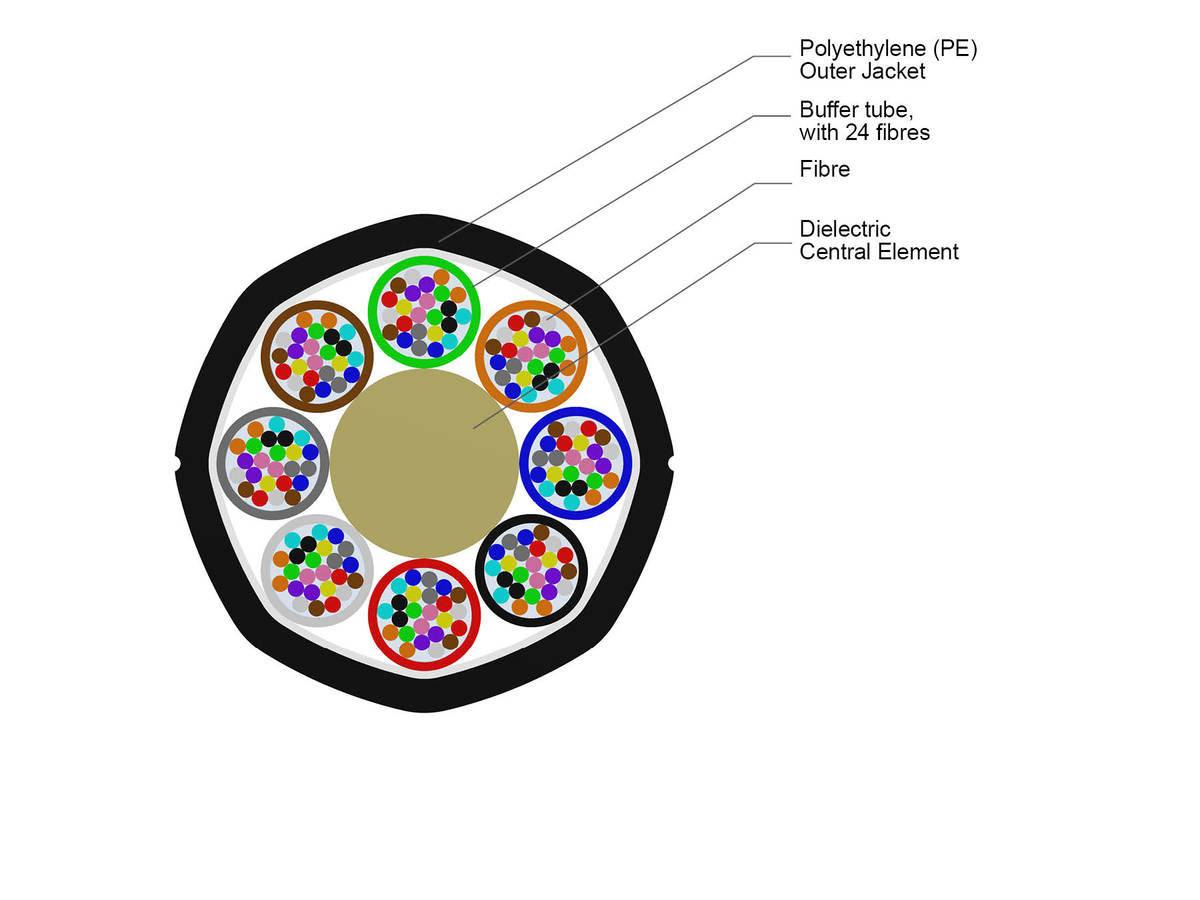

Cable Design
| Cable marking | M#H#S#CORNING#Year# MINIXTEND® XD FAB CABLE 8x24 CONTOUR 190 LT1.4#ID numbre |
| Fibre count | 192 |
| Outer jacket colour | Black |
| Outer jacket material | High Density Polyethylene (HDPE) |
| Outer jacket nominal thickness | 0.45 mm |
| Buffer tube diameter | 1.4 mm |
| Number of active tubes | 8 |
| Number of tube positions | 8 |
| Fibre colouring | 1-12: blue, orange, green, brown, grey, white, red, black, yellow, violet, rose, turquoise - 13-24: (all with one black ring mark) blue, orange, green, brown, grey, white, red, natural, yellow, violet, pink, turquoise |
| Fibres per tube | 24 |
| Colour Code Standards | Telcordia |
Mechanical Specifications
| Max. tensile strength, short-term | 1000 N |
| Min. bend radius installation | 31 mm |
| Min. bend radius operation | 62 mm |
| Nominal outer diameter | 6.2 mm |
Optical Characteristics
| Fibre code | W |
| Performance option code | 40 |
| Fibre category | OS2 |
| Fibre Type | Single-mode (OS2) / 190 µm |
| Fibre name | SMF-28® Contour Pro |
| Maximum Attenuation | 0.32 dB/km / 0.32 dB/km / 0.18 dB/km |
| Wavelengths | 1310 nm / 1383 nm / 1550 nm |
| Fibre compliance | ITU-T G.652.D and ITU-T G.657.A2 |
| Fibre core diameter | 8.2 µm |
| Cladding diameter | 125 µm |
| Coating diameter | 188 µm |
| Dispersion @ 1550 nm | ≤ 18.6 [ps/(nm*km)] |
| Dispersion @ 1625 nm | ≤ 23.7 [ps/(nm*km)] |
| Cable cutoff wavelength | 1260 nm |
| Mode-Field Diameter at 1310 nm | 9.2 µm |
| Mode-Field Diameter at 1550 nm | 10.4 µm |
| PMD (Polarization Mode Dispersion) maximum individual fibre | ≤ 0.1 ps/√km |
Dimensions
| Cable Weight | 43 kg/km |
| Max. cable length per reel/drum | 6000 m |
Binderless FastAccess™ Technology
Innovative cable design that reduces cable access time up to 70 percent and lowers the risk of inadvertent fibre damage
Improved cable and fibre density
Small cable OD enables higher density and lower deploymentcost
Optimized for air-assisted install in microducts
Suitable for installation in a duct with 8-mm inner diameter
