216ZH4-Y3C49A20
MiniXtend® XD Cable with Binderless* FastAccess™ Technology, A-DQ(ZN)2Y 216 F (9x24), Single-Mode (G.652.D, G.657.A1, 190µm), Telcordia
General Specifications
| Product Number | 216ZH4-Y3C49A20 |
| EAN Code | 4099802347099 |
| Cable type | Stranded Loose Tube |
| Environment | Outdoor |
| Product type | Dielectric |
| Fibre category | G.657.A1 190 |
| Application | Miniduct |
| Cable geometry | Round |
Standards
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
Environmental Conditions
| Temperature range, installation | -5 °C to 50 °C |
| Temperature range, operation | -20 °C to 70 °C |
| Temperature range, storage | -30 °C to 70 °C |

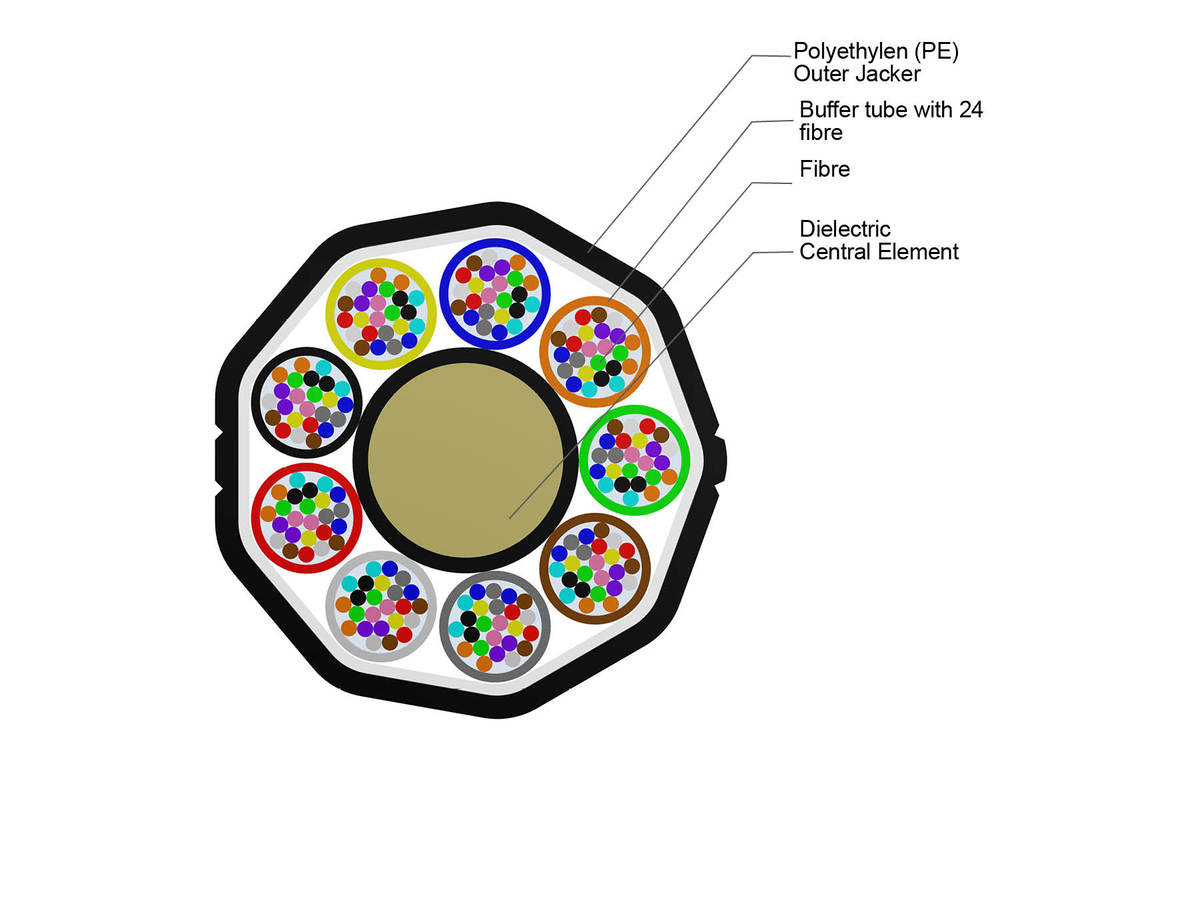

Cable Design
| Cable marking | M#H#S#CORNING#Year# MINIXTEND® XD FAB CABLE 9x24 G.657.A1 190 LT1.4#ID numbre |
| Central element | Dielectric |
| Fibre count | 216 |
| Outer jacket colour | Black |
| Outer jacket material | High Density Polyethylene (HDPE) |
| Outer jacket nominal thickness | 0.4 mm |
| Buffer tube colour | Blue, orange, green, brown, grey, white, red, black, yellow |
| Buffer tube diameter | 1.4 mm |
| Central element diameter | 3 mm |
| Number of active tubes | 9 |
| Number of filling elements | 0 |
| Number of tube positions | 9 |
| Fibre colouring | 1-12: blue, orange, green, brown, slate, white, red, black, yellow, violet, rose, aqua - 13-24 (all with one black ring mark) blue, orange, green, brown, slate, white, red, natural, yellow, violet, pink, turquoise |
| Fibres per tube | 24 |
Mechanical Specifications
| Crush resistance | 500 N/10 cm |
| Max. tensile strength, short-term | 1000 N |
| Min. bend radius installation | 140 mm |
| Min. bend radius operation | 105 mm |
| Nominal outer diameter | 7 mm |
Optical Characteristics
| Cable cutoff wavelength | 1260 nm |
| Fibre code | Z |
| Fibre name | SMF-28® Contour optical fiber with 190-micron outer diameter |
| Fibre Type | Single-mode |
| Fibre compliance | ITU-T G.652.D and ITU-T G.657.A1 |
| Performance option code | 49 |
| Cladding diameter | 125 µm |
| Dispersion @ 1550 nm | ≤ 0.018 nm |
| Dispersion @ 1625 nm | ≤ 0.022 nm |
| Maximum Attenuation | 0.36 dB/km / 0.22 dB/km |
| Mode-Field Diameter at 1310 nm | 9.2 µm |
| Wavelengths | 1310 nm / 1550 nm |
| PMD Link Design Value | ≤ 0.04 ps/(nm*km) |
| PMD (Polarization Mode Dispersion) maximum individual fibre | ≤ 0.1 ps/(nm*km) |
| Coating diameter | 188 µm |
| Fibre category | G.652.D/G.657.A1 |
Dimensions
| Cable Weight | 48 kg/km |
| Max. cable length per reel/drum | 6000 m |
| Length | 0 mm |
Binderless FastAccess™ Technology
Innovative cable design that reduces cable access time up to 70 percent and lowers the risk of inadvertent fibre damage
Improved cable and fibre density
Small cable OD enables higher density and lower deploymentcost
Optimized for air-assisted install in microducts
Suitable for installation in a duct with 8-mm inner diameter
