288WH4-Y3C40A20
MiniXtend® XD Cable with Binderless* FastAccess™ Technology, A-DQ(ZN)2Y 288 F (12x24), Single-Mode (G.652.D, G.657.A2, 190µm), Telcordia
General Specifications
| Product Number | 288WH4-Y3C40A20 |
| Cable type | Stranded Loose Tube |
| Environment | Outdoor |
| Product type | Dielectric |
| Fibre category | G.657.A2 |
| Application | Miniduct |
| Brand | MiniXtend® |
| Cable geometry | Round |
Standards
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
Environmental Conditions
| Temperature range, installation | -5 °C to 50 °C |
| Temperature range, operation | -30 °C to 60 °C |
| Temperature range, storage | -20 °C to 70 °C |

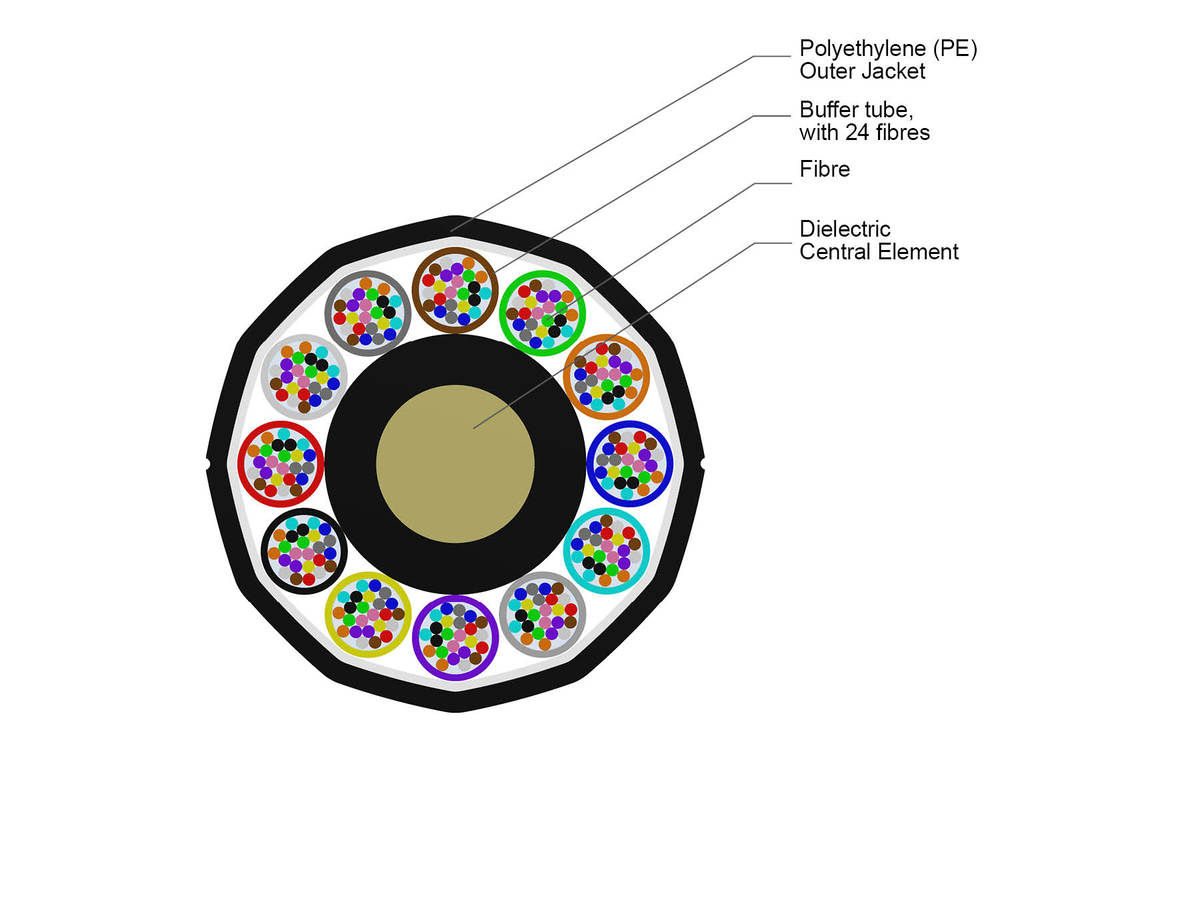

Cable Design
| Cable marking | M#H#S#CORNING#Year# MINIXTEND® XD FAB CABLE 12x24 CONTOUR 190 LT1.4#ID numbre |
| Fibre count | 288 |
| Outer jacket colour | Black |
| Outer jacket material | High Density Polyethylene (HDPE) |
| Outer jacket nominal thickness | 0.45 mm |
| Buffer tube diameter | 1.4 mm |
| Fibre bundle colouring | 1-12: blue, orange, green, brown, slate, white, red, black, yellow, violet, rose, aqua - 13-24 (all with one black ring mark) blue, orange, green, brown, slate, white, red, natural, yellow, violet, pink, turquoise |
| Number of active tubes | 12 |
| Number of tube positions | 12 |
| Fibres per tube | 24 |
| Colour Code Standards | Telcordia |
Mechanical Specifications
| Max. tensile strength, short-term | 1000 N |
| Min. bend radius installation | 162 mm |
| Min. bend radius operation | 122 mm |
| Nominal outer diameter | 8.2 mm |
Optical Characteristics
| Cable cutoff wavelength | 1260 nm |
| Fibre code | W |
| Fibre name | SMF-28® Contour optical fiber with 190-micron outer diameter |
| Fibre compliance | ITU-T G.652.D and ITU-T G.657.A2 |
| Performance option code | 40 |
| Cladding diameter | 125 µm |
| Maximum Attenuation | 0.34 dB/km / 0.20 dB/km |
| Mode-Field Diameter at 1310 nm | 9.2 µm |
| Wavelengths | 1310 nm / 1550 nm |
| PMD (Polarization Mode Dispersion) maximum individual fibre | ≤ 0.1 ps/(nm*km) |
| Coating diameter | 188 µm |
| Dispersion @ 1550 nm | ≤ 18.6 [ps/(nm ⋅ km)] |
| Dispersion @ 1625 nm | ≤ 23.7 [ps/(nm ⋅ km)] |
Dimensions
| Cable Weight | 70 kg/km |
| Max. cable length per reel/drum | 6000 m |
| Length | 0 mm |
Binderless FastAccess™ Technology
Innovative cable design that reduces cable access time up to 70 percent and lowers the risk of inadvertent fibre damage
Improved cable and fibre density
Small cable OD enables higher density and lower deploymentcost
Optimized for air-assisted install in microducts
Suitable for installation in a duct with 8-mm inner diameter
