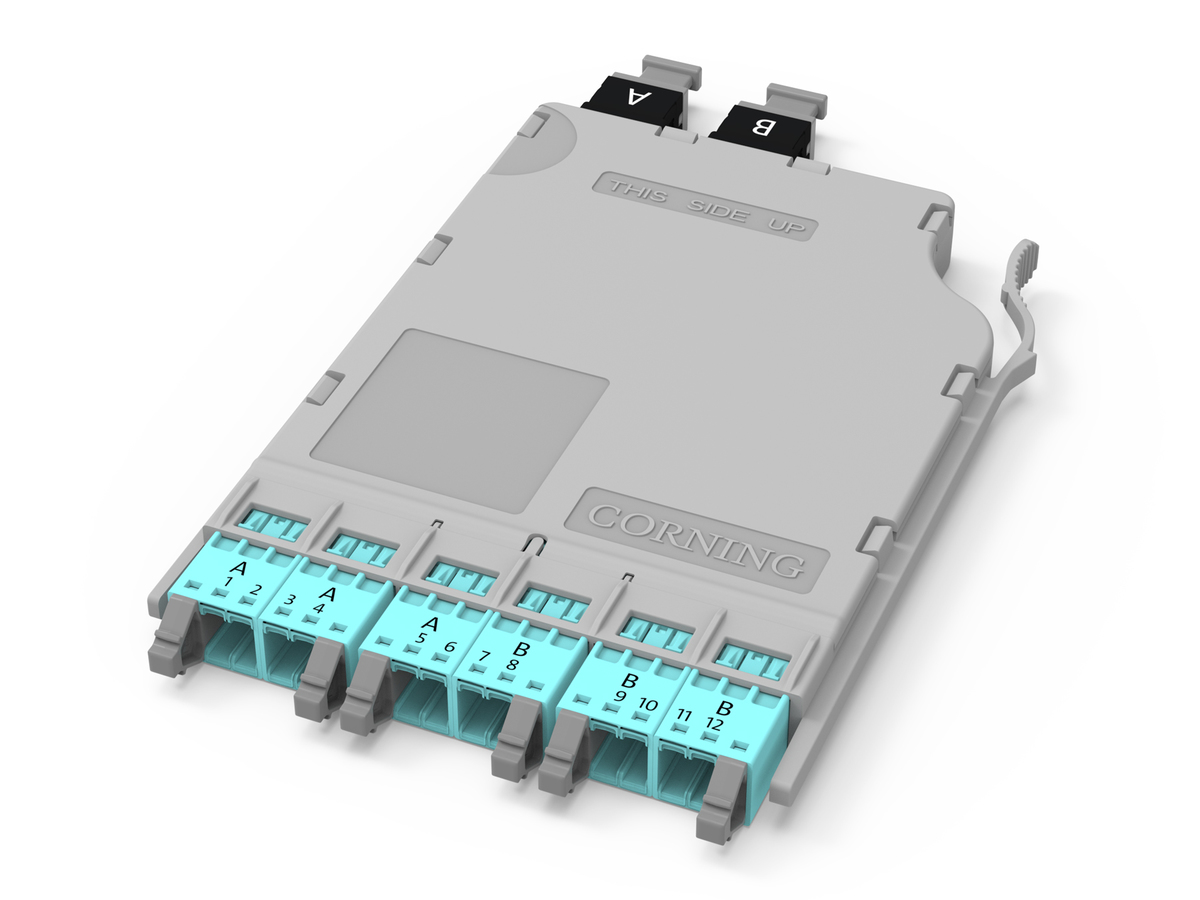

ECM-UM24-JM-93Q-ULL
EDGE™ MDC Module 24F, 50 µm multimode (OM4)
General Specifications
| Product Number | ECM-UM24-JM-93Q-ULL |
| Product type | Modules |
| Fibre category | 50 µm MM (OM4) |
| Application | Data Centre LAN/SAN |
Standards
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
Design
| Fibre count | 24 |
| Adapter type back | MTP® |
| Adapter colour back | Turquoise |
| Adapter type front | MDC MM |
| Housing type | Modules |
| Product family | EDGE™ |
Cable Design
| Polarity | Universal |
Optical Specification - Hardware
| Module Insertion Loss, Max | 0.2 dB |
Specifications - Connector A
| Connector type | MTP® |
| Polish | UPC |
| Ferrule material | Composite |
Specifications - Connector B
| Polish | UPC |
Dimensions
| Width | 105 mm |
| Depth | 125 mm |
| Length | 0 mm |
Ordering Information
| Packaging method | Individual Blister Packs |
| Units per delivery | 1/1 |
Rear-loading capability
Decreases the time to prepare and install modules into fibre housings
Increased density with MDC up to 3 times per rack unit with 36F module
Enables to increase density from 144 up to 432 fibres in a 1U housing
Low insertion loss performance
Improved performance specs allow for more mated pairs and/or longer link distances
Universal wiring
Decreases complexity and risks associated with managing polarity during moves, adds, and changes
