008JB4-13122A20

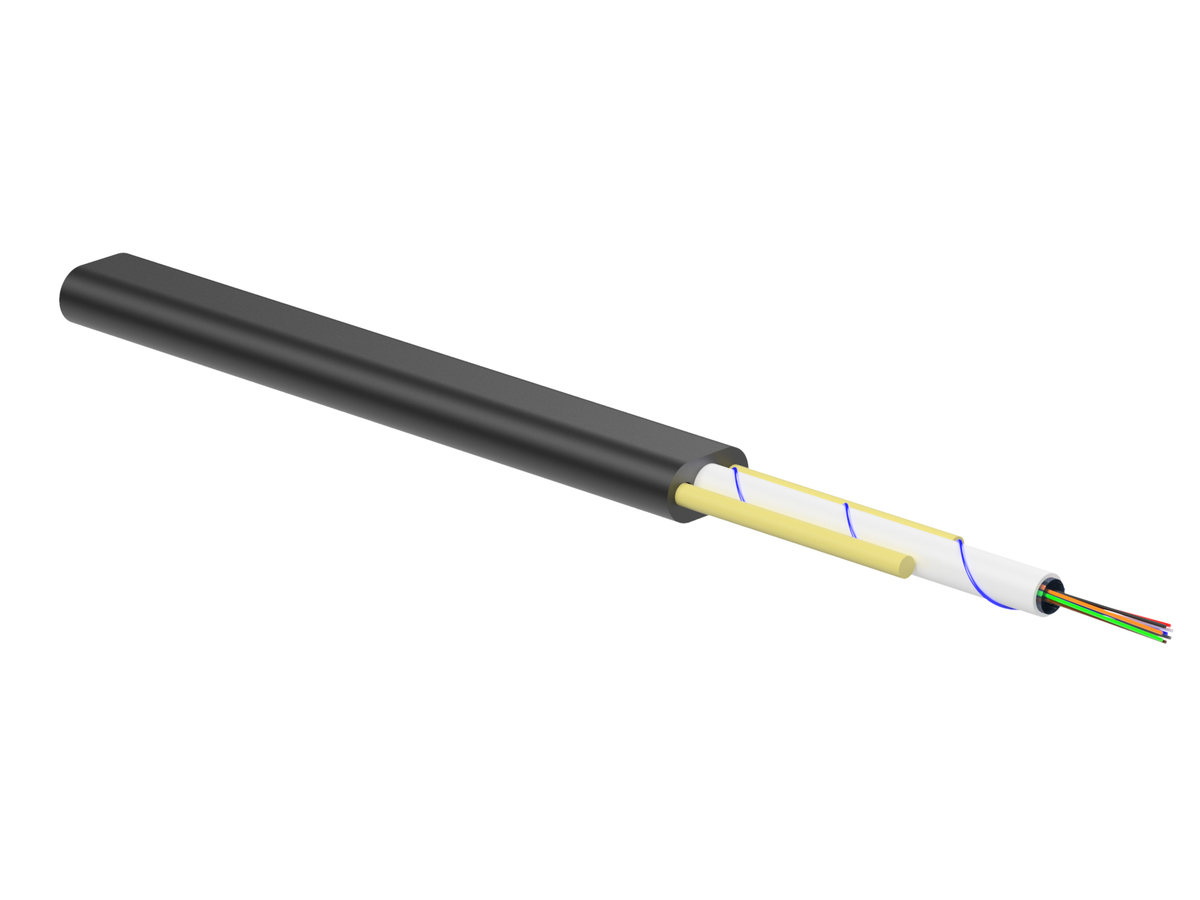

SST-Drop™ Single-Tube, Dielectric, Gel-Filled Cable 8 F, E9 Single-Mode ClearCurve™ R7.5 Bend Fibre (LBL)
General Specifications
| Product Number | 008JB4-13122A20 |
| Cable Type | Single Tube |
| Environment | Outdoor |
| Product Type | Self-Supporting, Figure-8 |
| Fiber Category | ClearCurve® LBL |
| Application | Aerial, Duct, Drop |
| Cable geometry | Other |
Standards
| Reaction to Fire | Fca |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Waterblocking | IEC 60794-1-22 Method F5B |
| Level of corrosion | Non-corrosive according to IEC 60754-2 |
Environmental Conditions
| Temperature Range, Installation | -30 °C to 70 °C (-22 °F to 158 °F ) |
| Temperature Range, Operation | -40 °C to 70 °C (-40 °F to 158 °F ) |
| Temperature Range, Storage | -40 °C to 70 °C (-40 °F to 158 °F ) |
Cable Design
| Fiber Count | 8 |
| Fibers per Tube | 8 |
Mechanical Specifications
| Crush Resistance | 3000 N/10 cm |
| Max. Tensile Strength, Long-Term | 400 N |
| Max. Tensile Strength, Short-Term | 1350 N |
| Min. Bend Radius Operation | 80 mm |
| Nominal Outer Diameter | 8.1 mm x 4.5 mm |
Optical Characteristics
| Fiber Name | ClearCurve® LBL |
| Fiber Type | Single-mode |
| Cladding diameter | 125 µm ± 0.7µm |
| Maximum Attenuation | 0.36 dB/km / 0.22 dB/km |
| Fiber Bend Performance at 1550nm 7.5mm radius | ≤ 0.2 dB/turn |
| Mode-Field Diameter at 1310 nm | 8.6 µm |
| Mode-Field Diameter at 1550 nm | 9.65 µm |
| Wavelengths | 1310 nm / 1550 nm |
| PMD Link Design Value | ≤ 0.06 ps/(nm*km) |
| PMD maximum individual fiber | ≤ 0.2 ps/(nm*km) |
| Fiber Category | SM Bend Resistant (G657.A2/B2) |
Dimensions
| Cable Weight | 30 kg/km |
Dielectric design
Eliminates bonding
Standard ALTOS® Cable tube design in single-tube design
Standard practices and hardware compatibility
Crush resistance
Fiber protection and signal integrity
