096KUB-T4130D20
ALTOS® Figure-8 Loose Tube, Gel-Free Cable 96 F, 62.5 µm multimode (OM1)
General Specifications
| Product Number | 096KUB-T4130D20 |
| Métodos de instalação | Aéreo |
| Tipo de cabo | Loose Tube |
| Ambiente | Externo |
| Tipo de produto | Autoportante, Figura-8 |
| Categoria da fibra | 62,5 µm MM (OM1) |
| Geometria do cabo | Outro |
Normas
| RoHS | Livre de substâncias perigosas de acordo com RoHS 2011/65/EU |
| Instalações comuns | Aéreo auto-sustentado externo |
| Projeto e critérios de teste | ANSI/ICEA S-87-640 |
Condições ambientais
| Notes | Corning recommends storing cable in a proper temperature environment prior to installation to allow the cable temperature to meet installation temperature range specifications for best installation results. |
| Faixa de temperatura, instalação | -30 °C to 70 °C (-22 °F to 158 °F ) |
| Faixa de temperatura, operação | -40 °C to 70 °C (-40 °F to 158 °F ) |
| Faixa de temperatura, armazenamento | -40 °C to 70 °C (-40 °F to 158 °F ) |

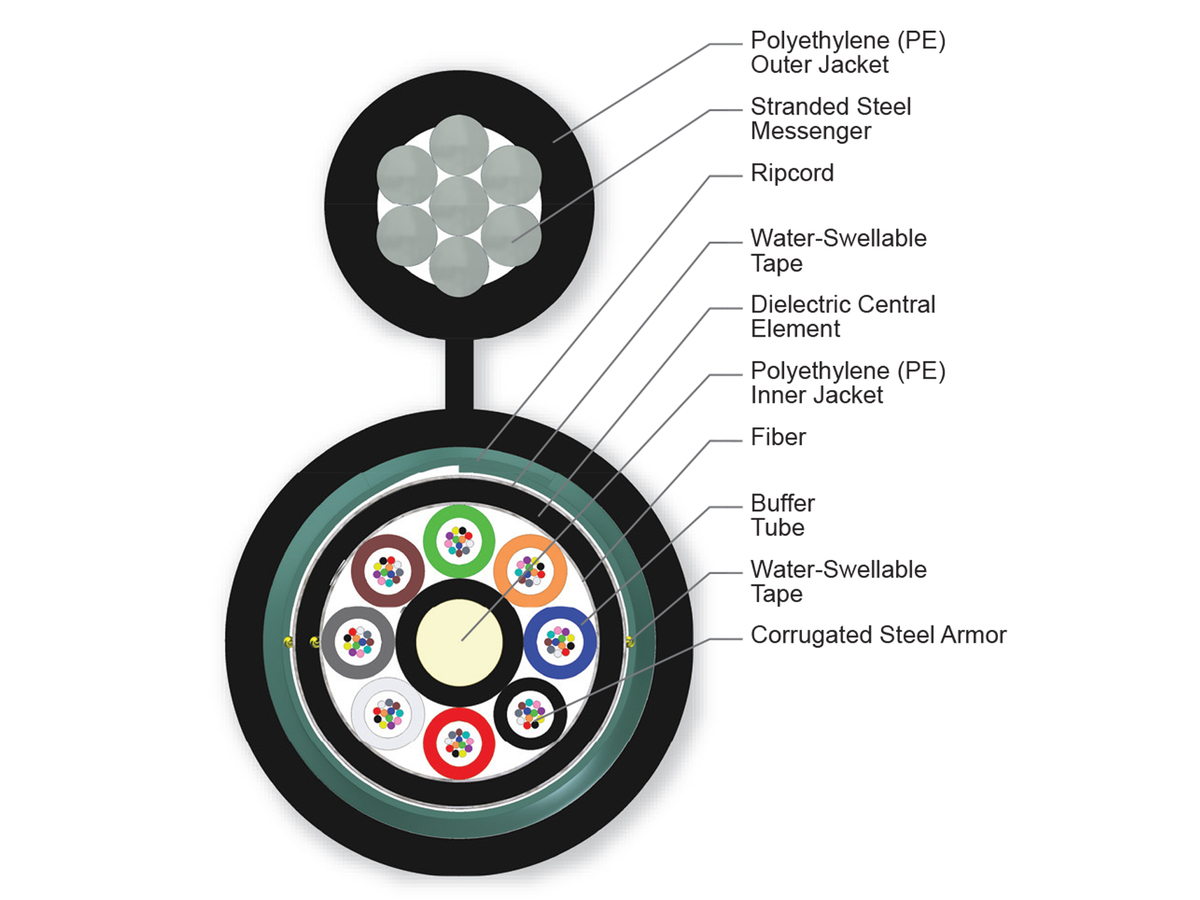

Cable Design
| Central Element | Dielectric |
| Fiber Count | 96 |
| Number of Ripcords | 3 |
| Outer Jacket Color | Black |
| Outer Jacket Material | Polyethylene (PE) |
| Tensile Strength Elements and/or Armoring - Layer 1 | Corrugated steel tape armor |
| Buffer Tube Color | Blue, Orange, Green, Brown, Slate, White, Red, Black |
| Buffer Tube Diameter | 2.5 mm (0.1 in) |
| Inner Jacket Material | Polyethylene (PE) |
| Messenger | Stranded steel |
| Number of Active Tubes | 8 |
| Number of Tube Positions | 8 |
| Tape | Water-swellable |
| Fiber Coloring | Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua |
| Fibras por tubo | 12 |
| Color Code Standards | Telcordia |
Mechanical Specifications
| Nominal Cable Height | 27.6 mm (1.09 in) |
| Nominal Outer Diameter | 16 mm (0.63 in ) |
| Min. Bend Diameter Installation | 480 mm (18.9 in) |
| Min. Bend Diameter Operation | 320 mm (12.6 in) |
Dimensões
| Peso do Cabo | 432 kg/km |
Livre-Gel tecnologia waterblocking
Preparação cabo-friendly Artesanato
Capa de polietileno
Resistente, durável e fácil de decapar (ao mesmo tempo que oferece proteção superior contra radiação UV, fungos, abrasão e outros fatores ambientais)
Design de cabo em formato de 8
Instalação em um único passo fácil
