Cable loose tube ADSS SOLO®, relleno de gel, revestimiento doble 24 F, monomodo (OS2)

Specifications

General Specifications

Product Number	024EAE-T4A01A20
Tipo de cable	Tubo holgado
Ambiente	Externo
Tipo de producto	Autoportante, ADSS
Categoría de la fibra	Monomodo (OS2)
Geometría del cable	Otros

Normas

RoHS	Libre de sustancias peligrosas según RoHS 2011/65/EU
Homologaciones y listados	Programas de desarrollo rural del USDA
Instalaciones comunes	Aéreo autoportante externo
Criterios de diseño y prueba	ANSI/ICEA S-87-640

Condiciones ambientales

Rango de temperatura, instalación	-30 °C to 70 °C (-22 °F to 158 °F )
Rango de temperatura, funcionamiento	-40 °C to 70 °C (-40 °F to 158 °F )
Rango de temperatura, almacenamiento	-40 °C to 75 °C (-40 °F to 167 °F )

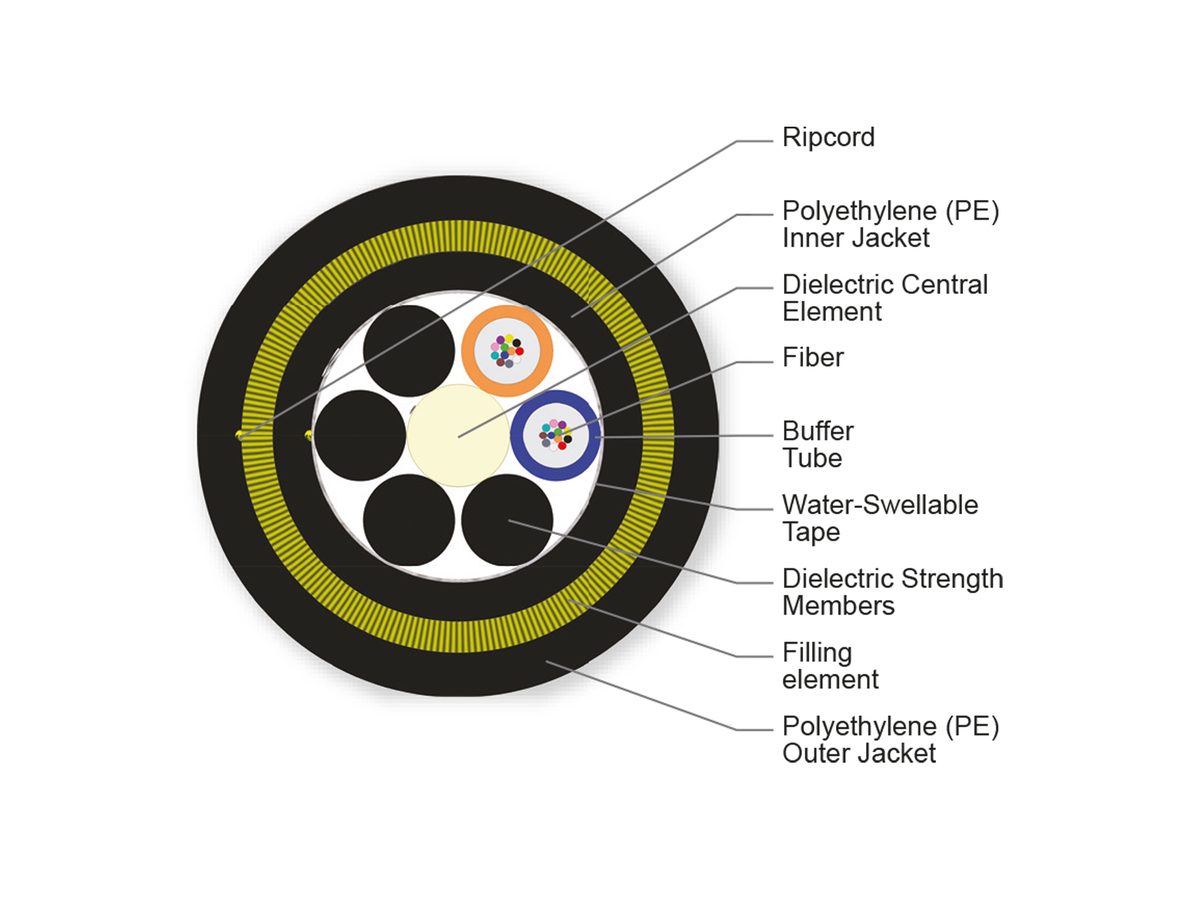

Diseño del cable

Elemento central	Dieléctrico
Número de fibras	24
Número de hilos de rasgado	3
Color de la chaqueta externa	Negro
Material de la chaqueta externa	Polietileno (PE)
Elementos y/o armadura de resistencia a la tracción - Capa 1	Miembros de rigidez dieléctrica
Color del tubo de buffer	Azul, Naranja
Diámetro del tubo de buffer	2,85 mm
Material de la chaqueta interna	Polietileno (PE)
Número de tubos activos	2
Número de elementos de relleno	4
Número de posiciones del tubo	6
Cinta	Expandible en agua
Coloración de la fibra	Azul, Naranja, Verde, Marrón, Pizarra, Blanco, Rojo, Negro, Amarillo, Violeta, Rosa, Verde agua
Fibras por tubo	12
Color Code Standards	Telcordia

Especificaciones mecánicas

Diámetro externo nominal	16,2 mm
Código de vano	A
Min. Bend Diameter Installation	486 mm
Min. Bend Diameter Operation	324 mm

Dimensiones

Peso del Cable

193 kg/km

Installation Conditions

Span	Initial Installation		NESC Light		NESC Medium		NESC Heavy
Span	SAG	Tension	SAG	Tension	SAG	Tension	SAG	Tension
15 m (49.2 ft)	1 %	361 N (81.2 lbf)	0.6 %	696 N (156.5 lbf)	1.7 %	932 N (209.5 lbf)	2.1 %	1,458 N (327.8 lbf)
30 m (98.4 ft)	1 %	722 N (162.3 lbf)	0.6 %	1,337 N (300.6 lbf)	1.8 %	1,757 N (395 lbf)	2.3 %	2,665 N (599.1 lbf)
46 m (150.9 ft)	1 %	1,083 N (243.5 lbf)	0.6 %	1,942 N (436.6 lbf)	1.9 %	2,516 N (565.6 lbf)	2.4 %	3,744 N (841.7 lbf)
61 m (200.1 ft)	1 %	1,444 N (324.6 lbf)	0.6 %	2,520 N (566.5 lbf)	1.9 %	3,232 N (726.6 lbf)	2.5 %	4,743 N (1,066.3 lbf)
76 m (249.3 ft)	1 %	1,804 N (405.6 lbf)	0.6 %	3,078 N (692 lbf)	2 %	3,915 N (880.1 lbf)	2.7 %	5,683 N (1,277.6 lbf)
91 m (298.5 ft)	1 %	2,165 N (486.7 lbf)	0.7 %	3,619 N (813.6 lbf)	2.1 %	4,571 N (1,027.6 lbf)	2.7 %	6,579 N (1,479 lbf)
107 m (351 ft)	1 %	2,526 N (567.9 lbf)	0.7 %	4,146 N (932.1 lbf)	2.1 %	5,206 N (1,170.4 lbf)	2.8 %	7,440 N (1,672.6 lbf)
122 m (400.2 ft)	1 %	2,887 N (649 lbf)	0.7 %	4,663 N (1,048.3 lbf)	2.2 %	5,824 N (1,309.3 lbf)	2.9 %	8,271 N (1,859.4 lbf)
137 m (449.4 ft)	1 %	3,248 N (730.2 lbf)	0.7 %	5,169 N (1,162 lbf)	2.2 %	6,427 N (1,444.8 lbf)	3 %	9,078 N (2,040.8 lbf)
152 m (498.6 ft)	1 %	3,609 N (811.3 lbf)	0.7 %	5,667 N (1,274 lbf)	2.2 %	7,017 N (1,577.5 lbf)	3.1 %	9,864 N (2,217.5 lbf)
168 m (551 ft)	1 %	3,970 N (892.5 lbf)	0.7 %	6,157 N (1,384.2 lbf)	2.3 %	7,596 N (1,707.7 lbf)	3.1 %	10,631 N (2,389.9 lbf)
183 m (600.2 ft)	1 %	4,331 N (973.6 lbf)	0.7 %	6,641 N (1,493 lbf)	2.3 %	8,164 N (1,835.3 lbf)	3.2 %	11,381 N (2,558.6 lbf)
198 m (649.4 ft)	1 %	4,692 N (1,054.8 lbf)	0.7 %	7,119 N (1,600.4 lbf)	2.3 %	8,724 N (1,961.2 lbf)	3.2 %	12,117 N (2,724 lbf)
213 m (698.6 ft)	1 %	5,053 N (1,136 lbf)	0.7 %	7,591 N (1,706.5 lbf)	2.4 %	9,275 N (2,085.1 lbf)	3.3 %	12,840 N (2,886.6 lbf)
229 m (751.1 ft)	1 %	5,413 N (1,216.9 lbf)	0.7 %	8,059 N (1,811.7 lbf)	2.4 %	9,819 N (2,207.4 lbf)	3.4 %	13,551 N (3,046.4 lbf)
244 m (800.3 ft)	1 %	5,774 N	0.8 %	8,522 N	2.4 %	10,356 N	3.4 %	14,251 N (3,203.8 lbf)
259 m	1 %	6,135 N	0.8 %	8,981 N	2.5 %	10,887 N	3.4 %	14,941 N
274 m	1 %	6,496 N	0.8 %	9,436 N	2.5 %	11,413 N	3.5 %	15,622 N
290 m	1 %	6,857 N	0.8 %	9,888 N	2.5 %	11,933 N	3.5 %	16,295 N
305 m	1 %	7,218 N	0.8 %	10,337 N	2.5 %	12,449 N	3.6 %	16,960 N
320 m	1 %	7,579 N	0.8 %	10,782 N	2.6 %	12,959 N	3.6 %	17,617 N
335 m	1 %	7,940 N	0.8 %	11,225 N	2.6 %	13,466 N	3.7 %	18,267 N
351 m	1 %	8,301 N	0.8 %	11,665 N	2.6 %	13,969 N	3.7 %	18,911 N
366 m	1 %	8,661 N	0.8 %	12,103 N	2.6 %	14,468 N	3.7 %	19,549 N
381 m	1 %	9,022 N	0.8 %	12,538 N	2.6 %	14,963 N	3.8 %	20,181 N
396 m	1 %	9,383 N	0.8 %	12,971 N	2.7 %	15,455 N	3.8 %	20,807 N
411 m	1 %	9,744 N	0.8 %	13,403 N	2.7 %	15,944 N	3.8 %	21,429 N
427 m	1 %	10,105 N	0.8 %	13,832 N	2.7 %	16,430 N	3.9 %	22,046 N
442 m	1 %	10,466 N	0.8 %	14,259 N	2.7 %	16,913 N	3.9 %	22,657 N
457 m	1 %	10,827 N	0.8 %	14,685 N	2.7 %	17,393 N	3.9 %	23,265 N
472 m	1 %	11,188 N	0.8 %	15,109 N	2.7 %	17,871 N	4 %	23,868 N
488 m	1 %	11,549 N	0.8 %	15,531 N	2.8 %	18,346 N	4 %	24,468 N
503 m	1 %	11,909 N	0.8 %	15,952 N	2.8 %	18,819 N	4 %	25,063 N
518 m	1 %	12,270 N	0.8 %	16,372 N	2.8 %	19,290 N	4 %	25,655 N
533 m	1 %	12,631 N	0.8 %	16,790 N	2.8 %	19,759 N	4.1 %	26,243 N
549 m	1 %	12,992 N	0.8 %	17,207 N	2.8 %	20,225 N	4.1 %	26,828 N
564 m	1 %	13,353 N	0.8 %	17,622 N	2.8 %	20,690 N
579 m	1 %	13,714 N	0.8 %	18,037 N	2.8 %	21,153 N
594 m	1 %	14,075 N	0.8 %	18,450 N	2.9 %	21,614 N
610 m	1 %	14,436 N	0.9 %	18,862 N	2.9 %	22,073 N
625 m	1 %	14,797 N	0.9 %	19,273 N	2.9 %	22,530 N
640 m	1 %	15,158 N	0.9 %	19,684 N	2.9 %	22,986 N
655 m	1 %	15,518 N	0.9 %	20,093 N	2.9 %	23,440 N
671 m	1 %	15,879 N	0.9 %	20,501 N	2.9 %	23,893 N

Feature/Benefits

Loose tube design

Stable performance and compatibility with all common fiber types

Self-supporting

Easy, one-step installation

Track-resistant jacket available

Suitable for installations up to 25 kV electric field potential

Innovative waterblocking cable core

Provides efficient and craft-friendly cable preparation
