072EAE-T4501A20

SOLO® ADSS Loose Tube, Gel-Filled, Dual-Jacket Cable 72 F, Single-mode (OS2)

Specifications

General Specifications

Product Number	072EAE-T4501A20
EAN Code	4056418175652
Cable Type	Loose Tube
Environment	Outdoor
Product Type	Self-Supporting, ADSS
Fiber Category	Single-mode (OS2)
Cable geometry	Other

Standards

RoHS	Free of hazardous substances according to RoHS 2011/65/EU
Approvals and Listings	USDA Rural Development Programs
Common Installations	Outdoor self-supporting aerial
Design and Test Criteria	ANSI/ICEA S-87-640

Environmental Conditions

Temperature Range, Installation	-30 °C to 70 °C (-22 °F to 158 °F )
Temperature Range, Operation	-40 °C to 70 °C (-40 °F to 158 °F )
Temperature Range, Storage	-40 °C to 75 °C (-40 °F to 167 °F )

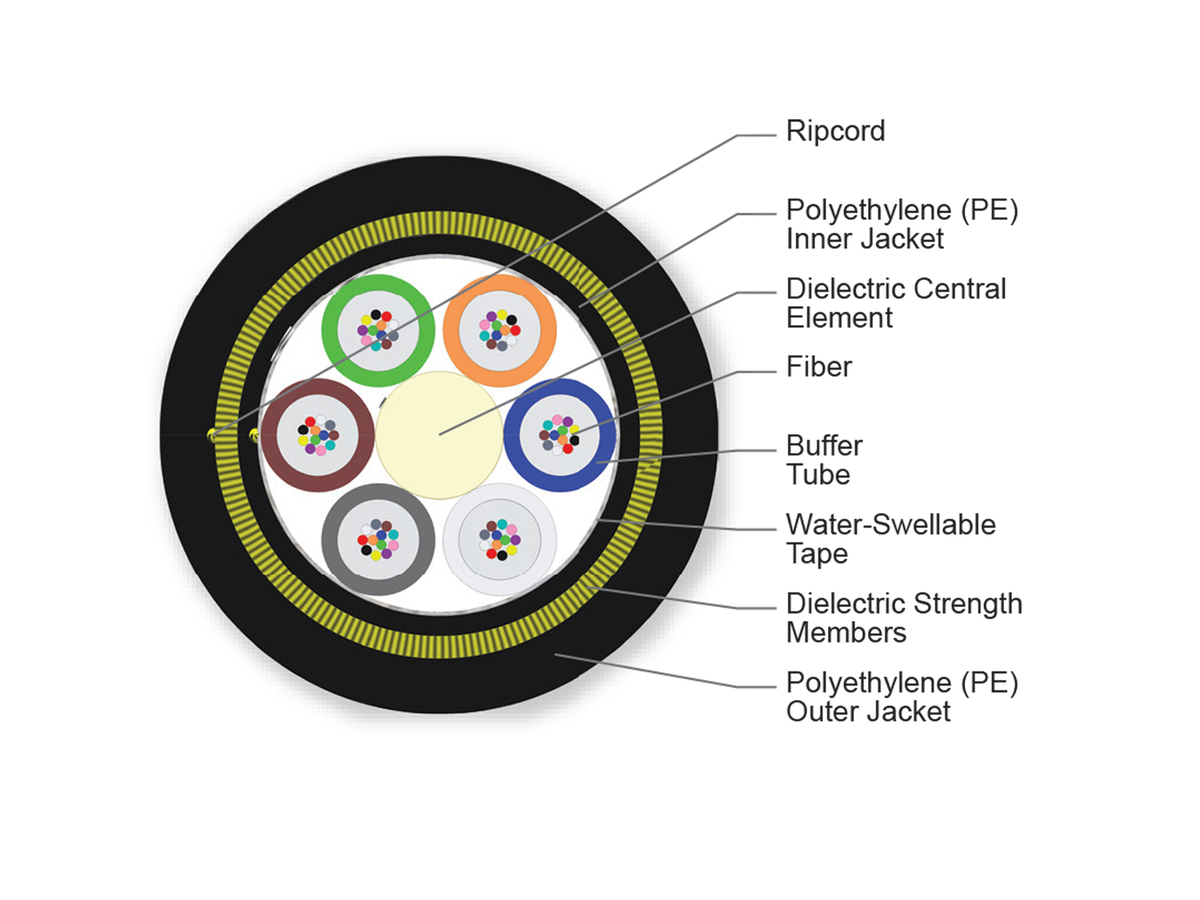

Cable Design

Central Element	Dielectric
Fiber Count	72
Number of Ripcords	3
Outer Jacket Color	Black
Outer Jacket Material	Polyethylene (PE)
Tensile Strength Elements and/or Armoring - Layer 1	Dielectric strength members
Buffer Tube Color	Blue, Orange, Green, Brown, Slate, White
Buffer Tube Diameter	2.85 mm (0.11 in)
Inner Jacket Material	Polyethylene (PE)
Number of Active Tubes	6
Number of Tube Positions	6
Tape	Water-swellable
Fiber Coloring	Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua
Fibers per Tube	12
Color Code Standards	Telcordia

Mechanical Specifications

Nominal Outer Diameter	14 mm (0.55 in )
Span Code	5
Min. Bend Diameter Installation	420 mm (16.54 in)
Min. Bend Diameter Operation	280 mm (11.02 in)

Optical Characteristics

Fiber Code	E
Fiber Name	Single-mode (OS2)
Fiber Type	Single-mode
Performance Option Code	01
Maximum Attenuation	0.4 dB/km / 0.4 dB/km / 0.3 dB/km
Wavelengths	1310 nm / 1383 nm / 1550 nm
Fiber Category	G.652.D

Dimensions

Cable Weight	148 kg/km (99.45 lb/1000 ft)
Length	0 mm (0 in)

Installation Conditions

Span	Initial Installation		NESC Light		NESC Medium		NESC Heavy
Span	SAG	Tension	SAG	Tension	SAG	Tension	SAG	Tension
15 m (49.2 ft)	1 %	275 N (61.8 lbf)	0.5 %	615 N (138.3 lbf)	1.6 %	851 N (191.3 lbf)	2.1 %	1,317 N (296.1 lbf)
30 m (98.4 ft)	1 %	550 N (123.6 lbf)	0.5 %	1,153 N (259.2 lbf)	1.8 %	1,555 N (349.6 lbf)	2.4 %	2,331 N (524 lbf)
46 m (150.9 ft)	1 %	825 N (185.5 lbf)	0.6 %	1,648 N (370.5 lbf)	1.9 %	2,187 N (491.7 lbf)	2.6 %	3,220 N (723.9 lbf)
61 m (200.1 ft)	1 %	1,100 N (247.3 lbf)	0.6 %	2,114 N (475.2 lbf)	2 %	2,774 N (623.6 lbf)	2.7 %	4,034 N (906.9 lbf)
76 m (249.3 ft)	1 %	1,375 N (309.1 lbf)	0.6 %	2,560 N (575.5 lbf)	2.1 %	3,329 N (748.4 lbf)	2.9 %	4,797 N (1,078.4 lbf)
91 m (298.5 ft)	1 %	1,650 N (370.9 lbf)	0.6 %	2,990 N (672.2 lbf)	2.2 %	3,860 N (867.8 lbf)	3 %	5,521 N (1,241.2 lbf)
107 m (351 ft)	1 %	1,925 N (432.8 lbf)	0.6 %	3,407 N (765.9 lbf)	2.2 %	4,372 N (982.9 lbf)	3.1 %	6,215 N (1,397.2 lbf)
122 m (400.2 ft)	1 %	2,200 N (494.6 lbf)	0.6 %	3,813 N (857.2 lbf)	2.3 %	4,868 N (1,094.4 lbf)	3.2 %	6,884 N (1,547.6 lbf)
137 m (449.4 ft)	1 %	2,475 N (556.4 lbf)	0.7 %	4,211 N (946.7 lbf)	2.3 %	5,350 N (1,202.7 lbf)	3.3 %	7,532 N (1,693.3 lbf)
152 m (498.6 ft)	1 %	2,750 N (618.2 lbf)	0.7 %	4,601 N (1,034.3 lbf)	2.4 %	5,821 N (1,308.6 lbf)	3.4 %	8,162 N (1,834.9 lbf)
168 m (551 ft)	1 %	3,025 N (680 lbf)	0.7 %	4,984 N (1,120.5 lbf)	2.4 %	6,283 N (1,412.5 lbf)	3.5 %	8,777 N (1,973.2 lbf)
183 m (600.2 ft)	1 %	3,300 N (741.9 lbf)	0.7 %	5,362 N (1,205.4 lbf)	2.5 %	6,735 N (1,514.1 lbf)	3.6 %	9,379 N (2,108.5 lbf)
198 m (649.4 ft)	1 %	3,575 N (803.7 lbf)	0.7 %	5,734 N (1,289 lbf)	2.5 %	7,180 N (1,614.1 lbf)	3.6 %	9,968 N (2,240.9 lbf)
213 m (698.6 ft)	1 %	3,850 N (865.5 lbf)	0.7 %	6,102 N (1,371.8 lbf)	2.6 %	7,618 N (1,712.6 lbf)	3.7 %	10,547 N (2,371.1 lbf)
229 m (751.1 ft)	1 %	4,125 N (927.3 lbf)	0.7 %	6,466 N (1,453.6 lbf)	2.6 %	8,050 N (1,809.7 lbf)	3.8 %	11,116 N (2,499 lbf)
244 m (800.3 ft)	1 %	4,400 N (989.2 lbf)	0.7 %	6,825 N (1,534.3 lbf)	2.6 %	8,475 N (1,905.3 lbf)	3.8 %	11,675 N (2,624.7 lbf)
259 m (849.5 ft)	1 %	4,674 N (1,050.8 lbf)	0.7 %	7,182 N (1,614.6 lbf)	2.7 %	8,896 N (1,999.9 lbf)	3.9 %	12,227 N (2,748.7 lbf)
274 m (898.7 ft)	1 %	4,949 N (1,112.6 lbf)	0.7 %	7,535 N (1,693.9 lbf)	2.7 %	9,312 N (2,093.4 lbf)	3.9 %	12,771 N (2,871 lbf)
290 m (951.2 ft)	1 %	5,224 N (1,174.4 lbf)	0.7 %	7,885 N (1,772.6 lbf)	2.7 %	9,724 N (2,186 lbf)	4 %	13,309 N (2,992 lbf)
305 m (1,000.4 ft)	1 %	5,499 N (1,236.2 lbf)	0.8 %	8,233 N (1,850.8 lbf)	2.8 %	10,131 N (2,277.5 lbf)	4 %	13,839 N (3,111.1 lbf)
320 m (1,049.6 ft)	1 %	5,774 N (1,298 lbf)	0.8 %	8,578 N (1,928.4 lbf)	2.8 %	10,535 N (2,368.4 lbf)	4.1 %	14,364 N (3,229.2 lbf)
335 m (1,098.8 ft)	1 %	6,049 N (1,359.9 lbf)	0.8 %	8,920 N (2,005.3 lbf)	2.8 %	10,935 N (2,458.3 lbf)	4.1 %	14,884 N (3,346.1 lbf)
351 m (1,151.3 ft)	1 %	6,324 N (1,421.7 lbf)	0.8 %	9,261 N (2,082 lbf)	2.8 %	11,331 N (2,547.3 lbf)	4.2 %	15,397 N (3,461.4 lbf)
366 m (1,200.5 ft)	1 %	6,599 N (1,483.5 lbf)	0.8 %	9,599 N (2,157.9 lbf)	2.9 %	11,725 N (2,635.9 lbf)	4.2 %	15,906 N (3,575.8 lbf)
381 m (1,249.7 ft)	1 %	6,874 N (1,545.3 lbf)	0.8 %	9,936 N (2,233.7 lbf)	2.9 %	12,115 N (2,723.6 lbf)
396 m (1,298.9 ft)	1 %	7,149 N (1,607.2 lbf)	0.8 %	10,271 N (2,309 lbf)	2.9 %	12,503 N (2,810.8 lbf)
411 m (1,348.1 ft)	1 %	7,424 N (1,669 lbf)	0.8 %	10,604 N (2,383.9 lbf)	2.9 %	12,888 N (2,897.3 lbf)
427 m (1,400.6 ft)	1 %	7,699 N (1,730.8 lbf)	0.8 %	10,935 N (2,458.3 lbf)	3 %	13,271 N (2,983.4 lbf)
442 m (1,449.8 ft)	1 %	7,974 N (1,792.6 lbf)	0.8 %	11,265 N (2,532.5 lbf)	3 %	13,651 N (3,068.9 lbf)
457 m (1,499 ft)	1 %	8,249 N (1,854.5 lbf)	0.8 %	11,594 N (2,606.4 lbf)	3 %	14,030 N (3,154.1 lbf)
472 m (1,548.2 ft)	1 %	8,524 N (1,916.3 lbf)	0.8 %	11,921 N (2,679.9 lbf)	3 %	14,406 N (3,238.6 lbf)
488 m (1,600.6 ft)	1 %	8,799 N (1,978.1 lbf)	0.8 %	12,247 N (2,753.2 lbf)	3 %	14,779 N (3,322.4 lbf)
503 m (1,649.8 ft)	1 %	9,074 N (2,039.9 lbf)	0.8 %	12,571 N (2,826.1 lbf)	3.1 %	15,151 N (3,406.1 lbf)
518 m (1,699 ft)	1 %	9,349 N (2,101.7 lbf)	0.8 %	12,895 N (2,898.9 lbf)	3.1 %	15,522 N (3,489.5 lbf)
533 m (1,748.2 ft)	1 %	9,624 N (2,163.6 lbf)	0.8 %	13,217 N (2,971.3 lbf)	3.1 %	15,890 N (3,572.2 lbf)
549 m (1,800.7 ft)	1 %	9,899 N (2,225.4 lbf)	0.8 %	13,539 N (3,043.7 lbf)
564 m (1,849.9 ft)	1 %	10,174 N (2,287.2 lbf)	0.8 %	13,859 N (3,115.6 lbf)
579 m (1,899.1 ft)	1 %	10,449 N (2,349 lbf)	0.8 %	14,178 N (3,187.3 lbf)
594 m (1,948.3 ft)	1 %	10,724 N (2,410.8 lbf)	0.8 %	14,497 N (3,259.1 lbf)
610 m (2,000.8 ft)	1 %	10,999 N (2,472.7 lbf)	0.8 %	14,814 N (3,330.3 lbf)
625 m (2,050 ft)	1 %	11,274 N (2,534.5 lbf)	0.8 %	15,131 N (3,401.6 lbf)
640 m (2,099.2 ft)	1 %	11,549 N (2,596.3 lbf)	0.8 %	15,447 N (3,472.6 lbf)
655 m (2,148.4 ft)	1 %	11,824 N (2,658.1 lbf)	0.8 %	15,762 N (3,543.4 lbf)

Feature/Benefits

Loose tube design

Stable performance and compatibility with all common fiber types

Self-supporting

Easy, one-step installation

Track-resistant jacket available

Suitable for installations up to 25 kV electric field potential

Innovative waterblocking cable core

Provides efficient and craft-friendly cable preparation
