SCS-056C-02S

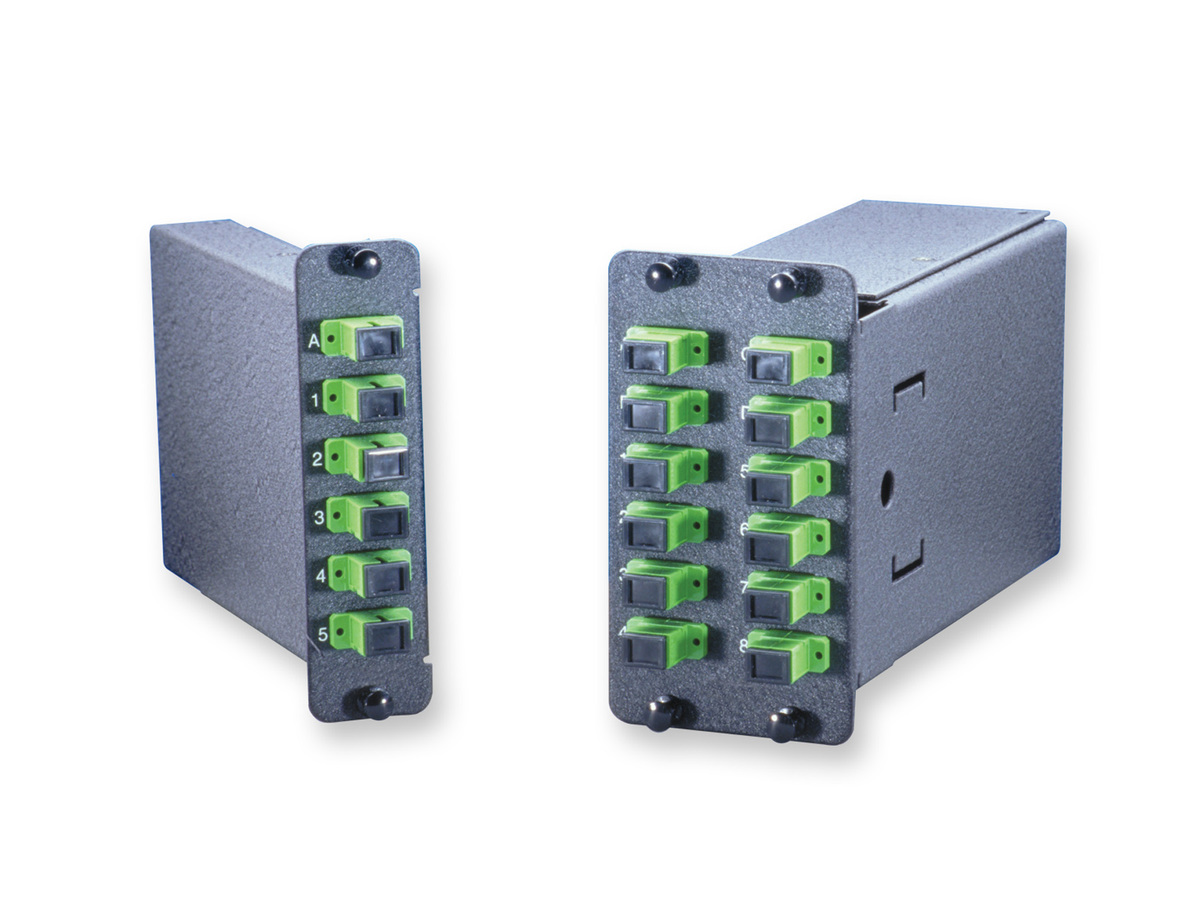

OptiSheath® Terminal Coarse Wavelength Division Multiplexing Module 5 channel, mux, SC APC connectors, 1610 down to 1510
General Specifications
| Product Number | SCS-056C-02S |
| Product Type | WDM solutions |
| Fiber Category | Single-mode (OS2) |
| Multiplexing type | CWDM |
| Application | Carrier Networks, CATV Environments |
Standards
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
Design
| Housing Type | WDM solutions |
| Product Family | OptiSheath® Terminal |
Optical Specification - Hardware
| Number of Mux/Demux Channels | 5 |
| Channel Spacing (nm) | 20 nm |
| First CWDM Channel | 1610 nm |
| Last CWDM Channel | 1510 nm |
| Is it 1310nm Channel Included? | Without 1310 nm filter |
Connector Specs
| Polish | APC |
| Connector Type | SC |
Ordering Information
| Package Contents | OptiSheath® Terminal Coarse Wavelength Division Multiplexing Module, 5 channel, mux, SC APC connectors, 1610 down to 1510 |
| Units per Delivery | 1/1 |
Totally passive
Low transmission costs
No epoxy in the optical path
Low-loss device
Low insertion loss and high isolation
Improved transmission costs
Transport protocol independent
Flexibility
Telcordia qualified
Reliability
