UCA3-6

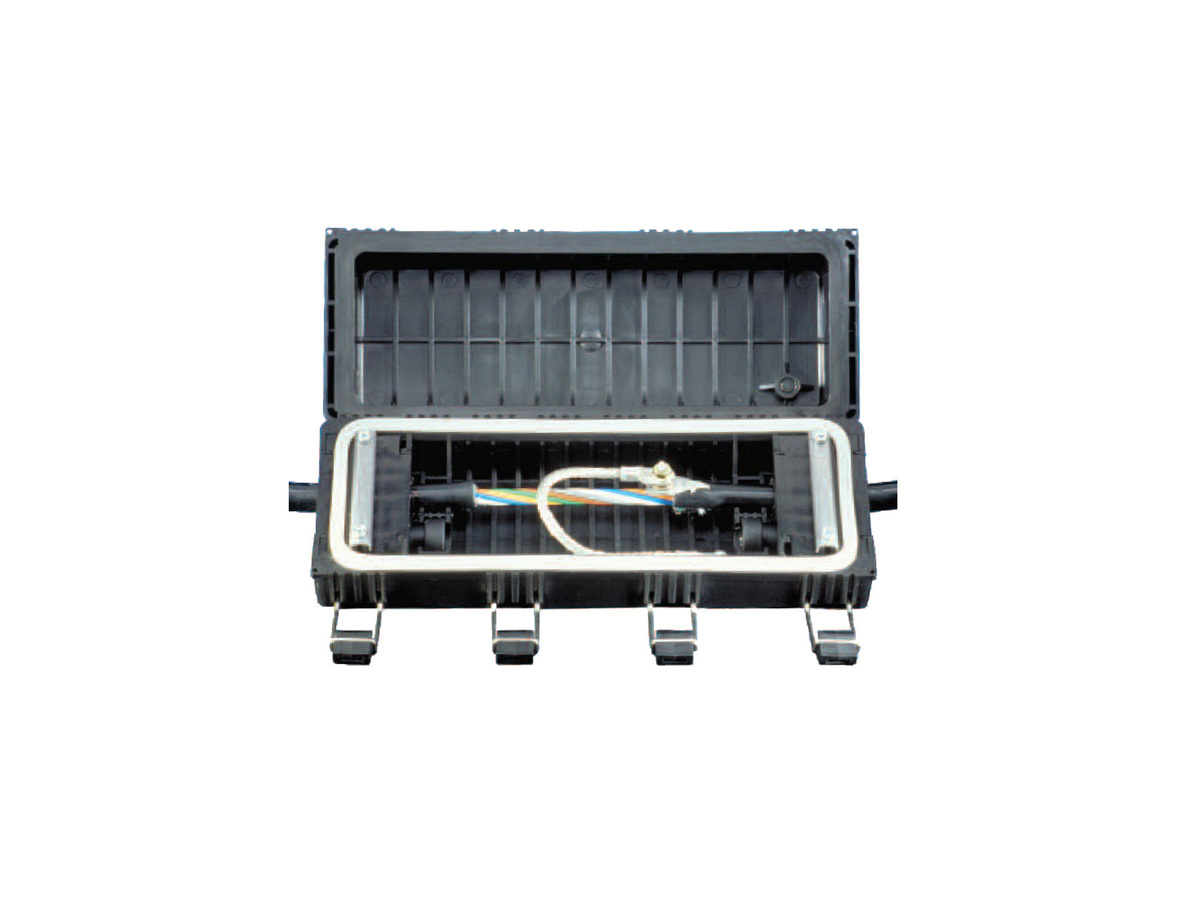

UCAO Splice Closure Grounding Closure
General Specifications
| Product Number | UCA3-6 |
| Application | CATV Environments, Carrier Networks, Customer premises environments |
| Mounting Type | Pole-mount, Wall-Mount |
| Product Type | FOH Closures |
Standards
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
Design
| Number of Cable Entries | 4 |
| Number of Splice Shelves Included | 0 |
| Trays Capacity | 0 |
Dimensions
| Height | 124 cm |
| Width | 15 mm (0.59 in) |
| Depth | 308 cm |
| Weight | 1.5 kg |
Ordering Information
| Package Contents | Carton contents: (1) Closure with tray stacker and (2) Sealing wedges; (1) Sealing paste - labeled as “Dichtpaste”; (3) Strain-relief brackets; (5) Buffer tube holders; (1) Sealing gasket; (1) Sealing tape; (3) Ground wires; (3) Hose clamps. Accesory Kit: (2) Precut sealing tape, (2) Prewrapped dummy plugs, (2) Bar clamps for sealing wedges, (4) Bolts for sealing wedges, (1) Gauge for sealing tape, (2) Cleaning tissues, (1) Lubricant, (1) Brush |
| Units per Delivery | 1/1 |
Compact, lightweight, watertight design
Can be used in aerial, underground or direct-buried applications
Hinged case with snap-open clips
Easy access and re-entry
Reusable seals
Requires only cleaning and lubrication
Modular splice tray stacker holds up to five splice trays
Accommodates up to 60 single-fiber splices
No special tools required
Simple, cost-effective field installation
