Ribbon Cable, Riser

E-mail Product Family Specification
Ribbon Cable, Riser

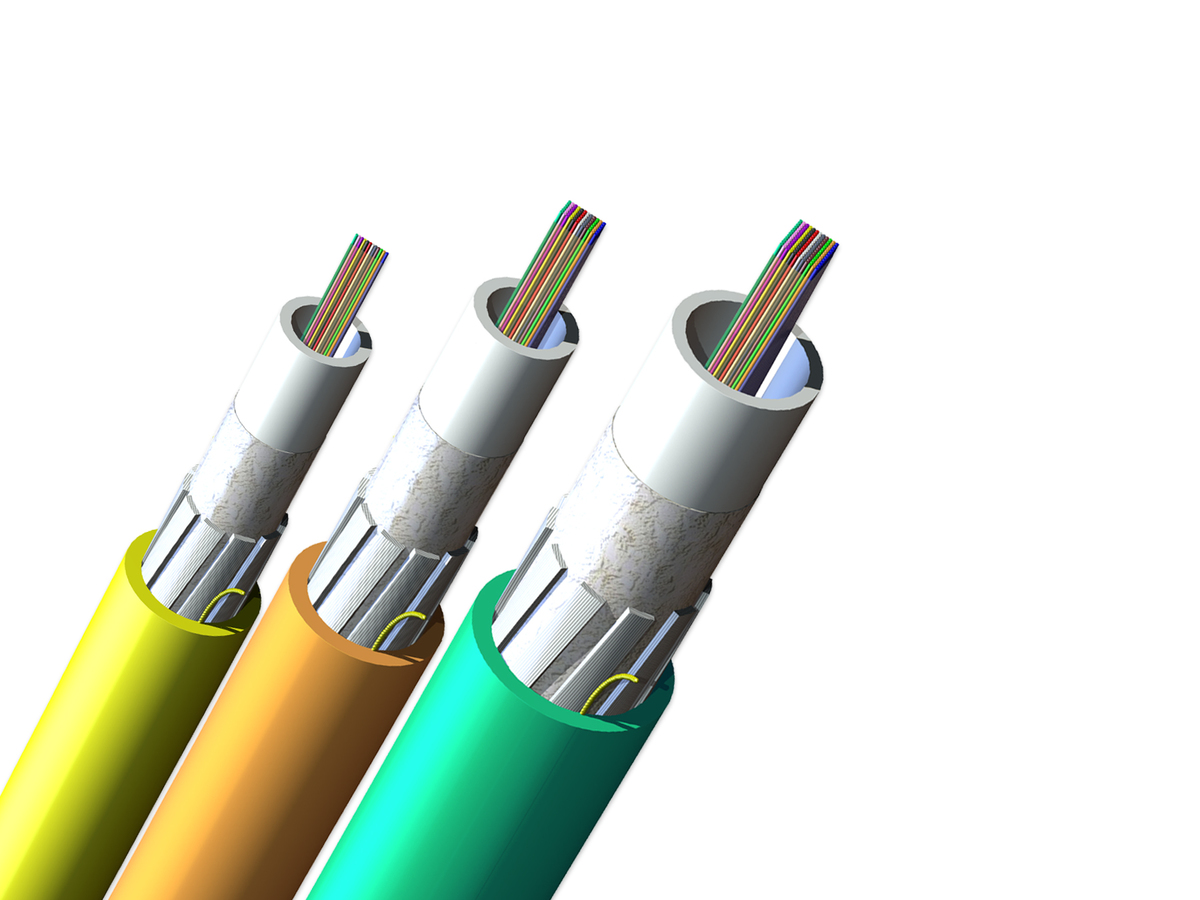

Corning ribbon riser cables are all-dielectric and designed for indoor use. The optical fibers are organized into easily identifiable 12-fiber ribbons inside a central tube. The required tensile strength is provided by dielectric strength elements that are helically stranded around the central tube. The specially formulated, flame-retardant outer jacket and rugged construction of these cables facilitates routing through riser shafts and long horizontal runs inside buildings. These cables are tested using the UL 1666 flame test, meet the application requirements of the National Electrical Code (NEC) and are OFNR and FT-4 listed. This cable is available in 12 different jacket colors €“ blue, orange, green, brown, slate, white, red, black, yellow, violet, rose and aqua. The colored jacket allows for easy visual identification of the cables. The standard jacket color will be determined by the dominant fiber type in the cable and will use the standard part numbers shown here. Contact Customer Care at 1-800-743-2675 to order other color options.

Products

Product Number Product Name
012EC7-14101-20 Ribbon Cable, Riser, 12 F, Single-mode (OS2)
Product Specifications
012KC7-14130-20 Ribbon Cable, Riser, 12 F, 62.5 µm multimode (OM1)
Product Specifications
012TC7-14131-20 Ribbon Cable, Riser, 12 F, 50 µm multimode (OM2)
Product Specifications
012TC7-14180-20 Ribbon Cable, Riser, 12 F, 50 µm multimode (OM3)
Product Specifications
012TC7-14190-20 Ribbon Cable, Riser, 12 F, 50 µm multimode (OM4)
Product Specifications
012TC7-14191-20 Ribbon Cable, Riser, 12 F, 50 µm multimode, extended 10G distance (OM4)
Product Specifications
024EC7-14101-20 Ribbon Cable, Riser, 24 F, Single-mode (OS2)
Product Specifications
024KC7-14130-20 Ribbon Cable, Riser, 24 F, 62.5 µm multimode (OM1)
Product Specifications
024TC7-14131-20 Ribbon Cable, Riser, 24 F, 50 µm multimode (OM2)
Product Specifications
024TC7-14180-20 Ribbon Cable, Riser, 24 F, 50 µm multimode (OM3)
Product Specifications
024TC7-14190-20 Ribbon Cable, Riser, 24 F, 50 µm multimode (OM4)
Product Specifications
024TC7-14191-20 Ribbon Cable, Riser, 24 F, 50 µm multimode, extended 10G distance (OM4)
Product Specifications
036EC7-14101-20 Ribbon Cable, Riser, 36 F, Single-mode (OS2)
Product Specifications
036KC7-14130-20 Ribbon Cable, Riser, 36 F, 62.5 µm multimode (OM1)
Product Specifications
036TC7-14131-20 Ribbon Cable, Riser, 36 F, 50 µm multimode (OM2)
Product Specifications
036TC7-14180-20 Ribbon Cable, Riser, 36 F, 50 µm multimode (OM3)
Product Specifications
036TC7-14190-20 Ribbon Cable, Riser, 36 F, 50 µm multimode (OM4)
Product Specifications
036TC7-14191-20 Ribbon Cable, Riser, 36 F, 50 µm multimode, extended 10G distance (OM4)
Product Specifications
048EC7-14101-20 Ribbon Cable, Riser, 48 F, Single-mode (OS2)
Product Specifications
048KC7-14130-20 Ribbon Cable, Riser, 48 F, 62.5 µm multimode (OM1)
Product Specifications
048TC7-14131-20 Ribbon Cable, Riser, 48 F, 50 µm multimode (OM2)
Product Specifications
048TC7-14180-20 Ribbon Cable, Riser, 48 F, 50 µm multimode (OM3)
Product Specifications
048TC7-14190-20 Ribbon Cable, Riser, 48 F, 50 µm multimode (OM4)
Product Specifications
048TC7-14191-20 Ribbon Cable, Riser, 48 F, 50 µm multimode, extended 10G distance (OM4)
Product Specifications
072EC7-14101-20 Ribbon Cable, Riser, 72 F, Single-mode (OS2)
Product Specifications
072KC7-14130-20 Ribbon Cable, Riser, 72 F, 62.5 µm multimode (OM1)
Product Specifications
072TC7-14131-20 Ribbon Cable, Riser, 72 F, 50 µm multimode (OM2)
Product Specifications
072TC7-14180-20 Ribbon Cable, Riser, 72 F, 50 µm multimode (OM3)
Product Specifications
072TC7-14190-20 Ribbon Cable, Riser, 72 F, 50 µm multimode (OM4)
Product Specifications
072TC7-14191-20 Ribbon Cable, Riser, 72 F, 50 µm multimode, extended 10G distance (OM4)
Product Specifications
096EC7-14101-20 Ribbon Cable, Riser, 96 F, Single-mode (OS2)
Product Specifications
096KC7-14130-20 Ribbon Cable, Riser, 96 F, 62.5 µm multimode (OM1)
Product Specifications
096TC7-14131-20 Ribbon Cable, Riser, 96 F, 50 µm multimode (OM2)
Product Specifications
096TC7-14180-20 Ribbon Cable, Riser, 96 F, 50 µm multimode (OM3)
Product Specifications
096TC7-14190-20 Ribbon Cable, Riser, 96 F, 50 µm multimode (OM4)
Product Specifications
096TC7-14191-20 Ribbon Cable, Riser, 96 F, 50 µm multimode, extended 10G distance (OM4)
Product Specifications
144EC7-14101-20 Ribbon Cable, Riser, 144 F, Single-mode (OS2)
Product Specifications
144KC7-14130-20 Ribbon Cable, Riser, 144 F, 62.5 µm multimode (OM1)
Product Specifications
144TC7-14131-20 Ribbon Cable, Riser, 144 F, 50 µm multimode (OM2)
Product Specifications
144TC7-14180-20 Ribbon Cable, Riser, 144 F, 50 µm multimode (OM3)
Product Specifications
144TC7-14190-20 Ribbon Cable, Riser, 144 F, 50 µm multimode (OM4)
Product Specifications
144TC7-14191-20 Ribbon Cable, Riser, 144 F, 50 µm multimode, extended 10G distance (OM4)
Product Specifications
216EC7-14101-20 Ribbon Cable, Riser, 216 F, Single-mode (OS2)
Product Specifications
216KC7-14130-20 Ribbon Cable, Riser, 216 F, 62.5 µm multimode (OM1)
Product Specifications
216TC7-14131-20 Ribbon Cable, Riser, 216 F, 50 µm multimode (OM2)
Product Specifications
216TC7-14180-20 Ribbon Cable, Riser, 216 F, 50 µm multimode (OM3)
Product Specifications
216TC7-14190-20 Ribbon Cable, Riser, 216 F, 50 µm multimode (OM4)
Product Specifications
216TC7-14191-20 Ribbon Cable, Riser, 216 F, 50 µm multimode, extended 10G distance (OM4)
Product Specifications
