1LAN-SDAN-7291

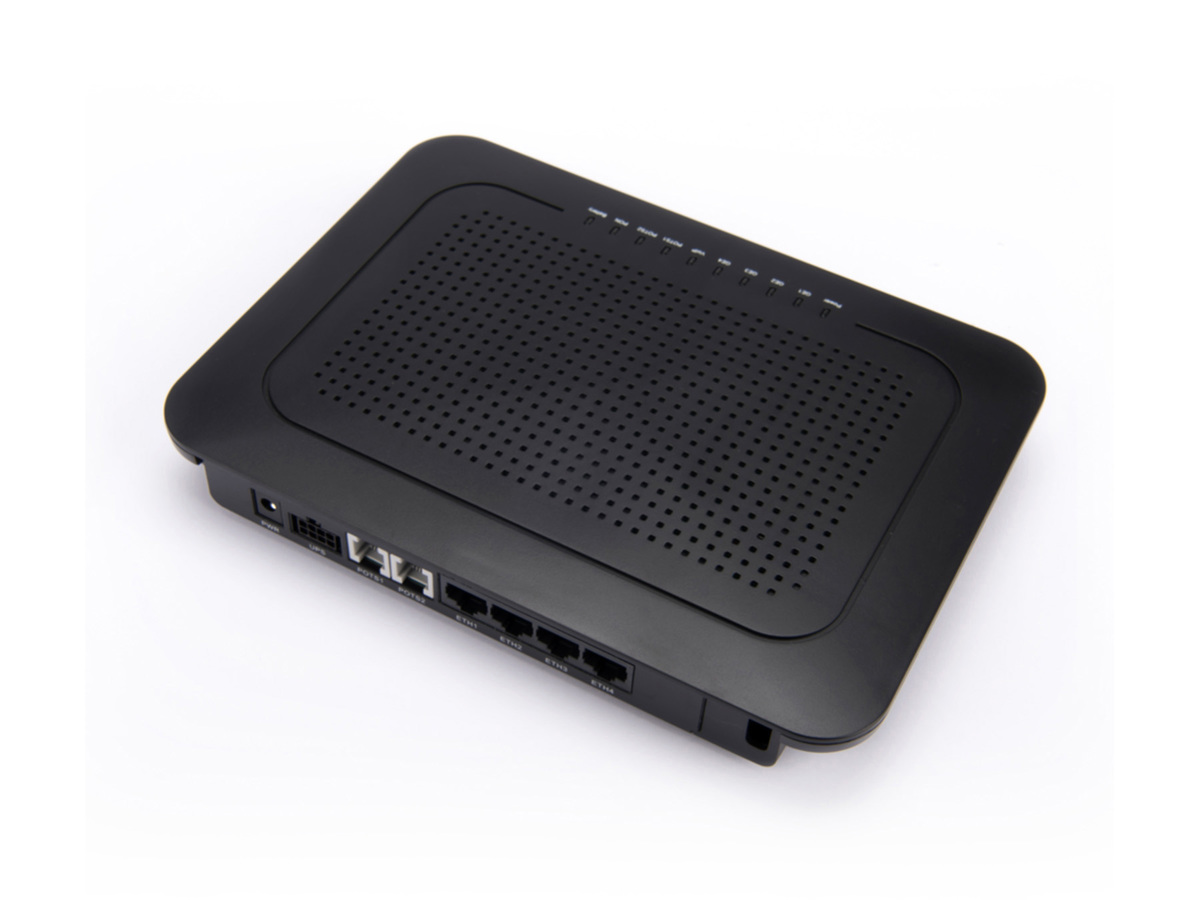

Software-Defined Access Node (SDAN), 7200 Series  2P+4GE POE

Typically ships in 14 day(s) Actual lead time confirmed upon receipt of order.

Standards
RoHS Free of hazardous substances according to RoHS 2011/65/EU
Standards G.726-32,  TR-143,  EMC - EN 300 386,  IEEE 802.1p marking/remarking, DSCP mapping,  ITU-T G.984.4 management,  G.711 (μ and a law),  Plenum-Rated,  ITU-T G.988 management,  TR-111,  G.722,  H.248 (RFC 3525),  TR-124,  FDA - FCC 47 CFR Part 15, Class B,  FDA - FDR 21 CFR 1040.10, Class I,  GR-909 Metallic Loop Testing,  Safety - UL/CSA 60950,  WEEE Emissions,  ITU-T G.988,  IEEE 802.1d Ethernet bridging and switching,  ETSI,  RFC 3435 - MGCP,  RoHS6 Emissions,  G.726-32,  FDA - FDR 21 CFR 1040.11, Class I,  Safety - IEC 60950,  EMC - EN 55024 Class B,  RFC 3261 - SIP,  G.729,  CE: Compliant,  EMC - EN 55022 Class B,  IEEE 802.1Q including VLAN translation, filtering, tagging, stacking (Q-in-Q),  IEEE 802.3at Type 1, 2, and 3 (8GE Port Variant ONLY),  ITU-T G.984,  EMC - FCC PART 15, SUBPART B, CLASS B,  TR-101
Environmental Conditions
Temperature Range, Operation -5 °C  to  50 °C    (23 °F  to  122 °F    )
Temperature Range, Storage -5 °C  to  50 °C    (23 °F  to  122 °F    )
Relative Humidity, Operation 5% to 95% (non-condensing)
Relative Humidity, Storage 5% to 90% (non-condensing)
Hardware
Optical Network GPON/Active Ethernet Configurable
Ports 2 POTS ports,  Four independent power sourcing equipment PSE gigabit ethernet port
Physical/Mechanical
LED Indicators LAN Data,  POTS,  Battery,  Management,  Power,  Fail,  Network
Mounting/Installation Options In-Wall,  Wall-Mount,  Desk-Mount
Optical Characteristics
Receiver Sensitivity -27 dBm
Optical Wavelength 1490 +/- 10 nm Rx, 1310 +/- 20 nm Tx
Upstream Data Rate GPON: 1.25 Gbps,  Active Ethernet: 1 Gbps
Average Launch Power -0.5 to +5 dBm
SD-LAN Networking
Enterprise LAN MDI/MDIX Auto Sensing and Auto Negotiation,  Up to 12 VLAN groups per port,  Up to 256 multicast groups,  IGMP V2/V3 Snooping with Immediate Leave,  Up to 1024 MAC address entries
GE PoE Ethernet Port Independent Power Sourcing Equipment (PSE) Gigabit Ethernet Ports,  Four independent power sourcing equipment PSE gigabit ethernet port,  Regulate port power up to 15.4W for Type 1 Power,  2-Point Forced Voltage,  Very High Reliability 4-Point PD Detection,  60W Total PoE power allocated to any combination of ports,  2-Point Forced Current,  Advanced Power Management: Fast Shutdown of Preselected Ports, Current/Voltage Monitoring
GPON pBit based GEM port and upstream Priority queue selection,  Serial number discovery,  Registration ID provisioning,  DBA support via mode-0 DBRu (piggy-back) reporting,  Downstream Advanced Encryption Standard (AES) support,  Multiple GEM ports with flexible mapping between TCONTs and Priority queues,  Forward Error Correction (FEC),  Upstream Traffic Management using priority-based or rate-controlled scheduling,  Dying Gasp,  Support for up to 8 T-CONTS with multiple priority queues per T-CONT,  IPTV traffic filtering (Multicast GEM port)
Layer 2 Automatic MAC address learning, aging and filtering
OAM and Management automatic rollback,  Remote firmware upgrade,  ACS - CWMP configuration, performance monitoring, diagnostics and software download
Security Remote Mirror
Voice Country specific coefficients and tones,  CLASS service support: Caller ID, Call Waiting, Call Forwarding, Call Transfer etc.,  Official Metaswitch and BroadSoft Certifications,  DHCP Client or static IP configuration,  Metallic loop testing,  T.38 and IN-BAND Fax,  Voice Activity Detection,  Echo Cancellation,  Comfort Noise Generation,  Proven interoperability with major soft switch and voice gateway vendors,  DTMF dialing and encoding by RELAY or IN-BAND method,  5 REN per line, Loop start, Balanced and unbalanced ringing
Performance
Downstream Data Rate GPON: 2.5 Gbps,  Active Ethernet: 1 Gbps
MAC Address Up to 1024 MAC address entries
Upstream Data Rate GPON: 1.25 Gbps,  Active Ethernet: 1 Gbps
VLAN Up to 12 VLAN groups
Dimensions
Height 25 mm (0.98 in)
Width 222 mm (8.74 in)
Depth 152 mm (5.98 in)
Weight 9 kg
Length 0 mm (0 in)
Ordering Information
Units per Delivery 1/1

Multiple port configurations

Supports both GPON and Active ethernet

Easy connections to PoE devices

Remote or local power options available

Supports multiple PoE types
