80611314453

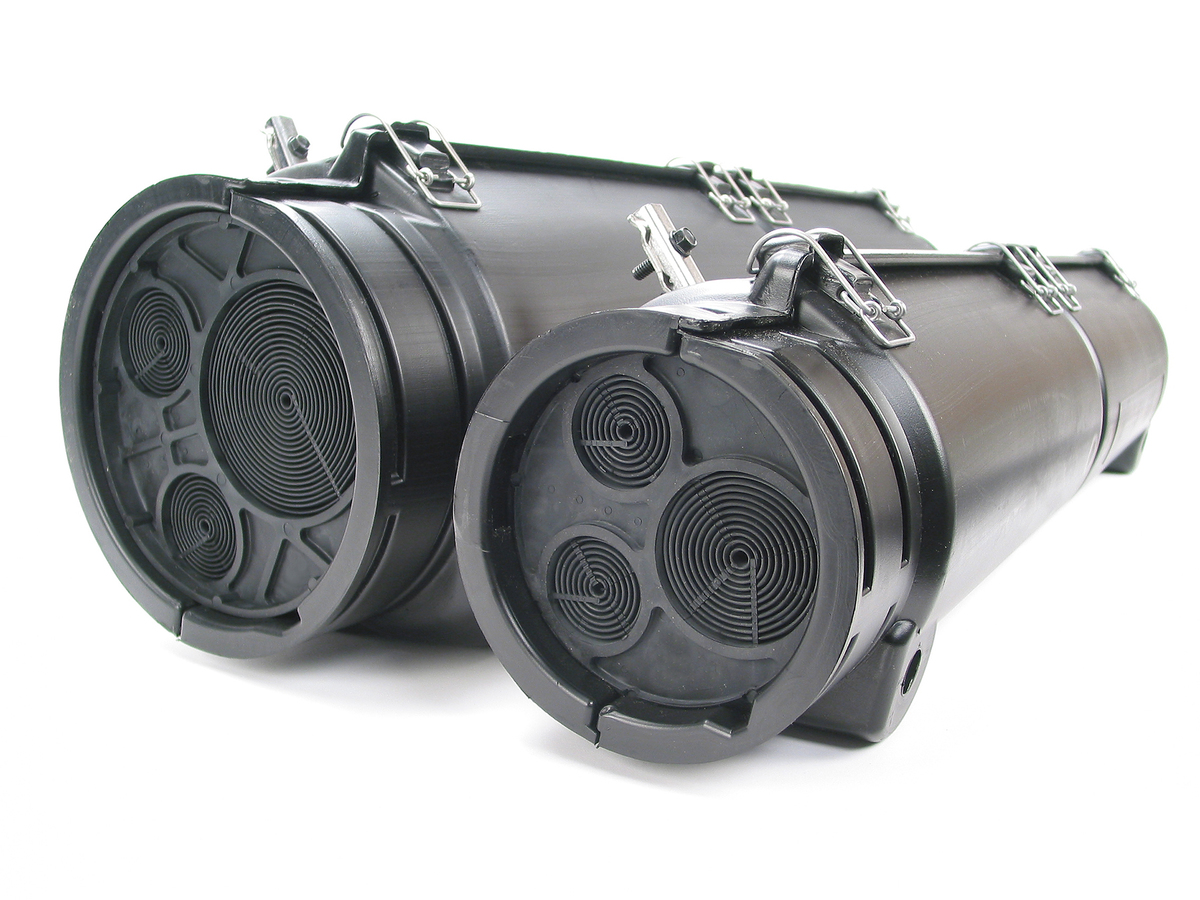

SLiC® Fiber Closure 733 Fiber Aerial Closure (33” x 7”), no tray - 288SF/864RF, SLFC-733-SP-0X
You might also be interested in
General Specifications
| Product Number | 80611314453 |
| EAN Code | 4059496459027 |
| Application | Carrier Networks, CATV Environments, Customer premises environments |
| Mounting Type | Aerial Strand Mount |
| Product Type | FOH Closures |
Standards
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
Design
| Capacity (number of splices) | 432 |
| Closure Type | Free-Breathing, Butt, In-line |
| Distribution Port Count | 4 |
| Max number of trays | 6 |
| Sealing Type | Rubber End Seal |
Dimensions
| Width | 838.2 mm (33 in) |
| Outer Diameter | 177.8 mm (7 in) |
| Length | 0 mm (0 in) |
Ordering Information
| Units per Delivery | 1/1 |
One-piece Construction
Easy installation and allows access to the cable splice without removing the closure or the terminal
Separate splice and drop termination chambers
Allows easy & secure access for service connections and drop maintenance (cleaning & testing) without having to enter the closure splice chamber
Double-walled construction
Durable protection from bending & cracking in the most extreme environments
Quick-release latches
Easy installation and re-entry without the need for special tools
